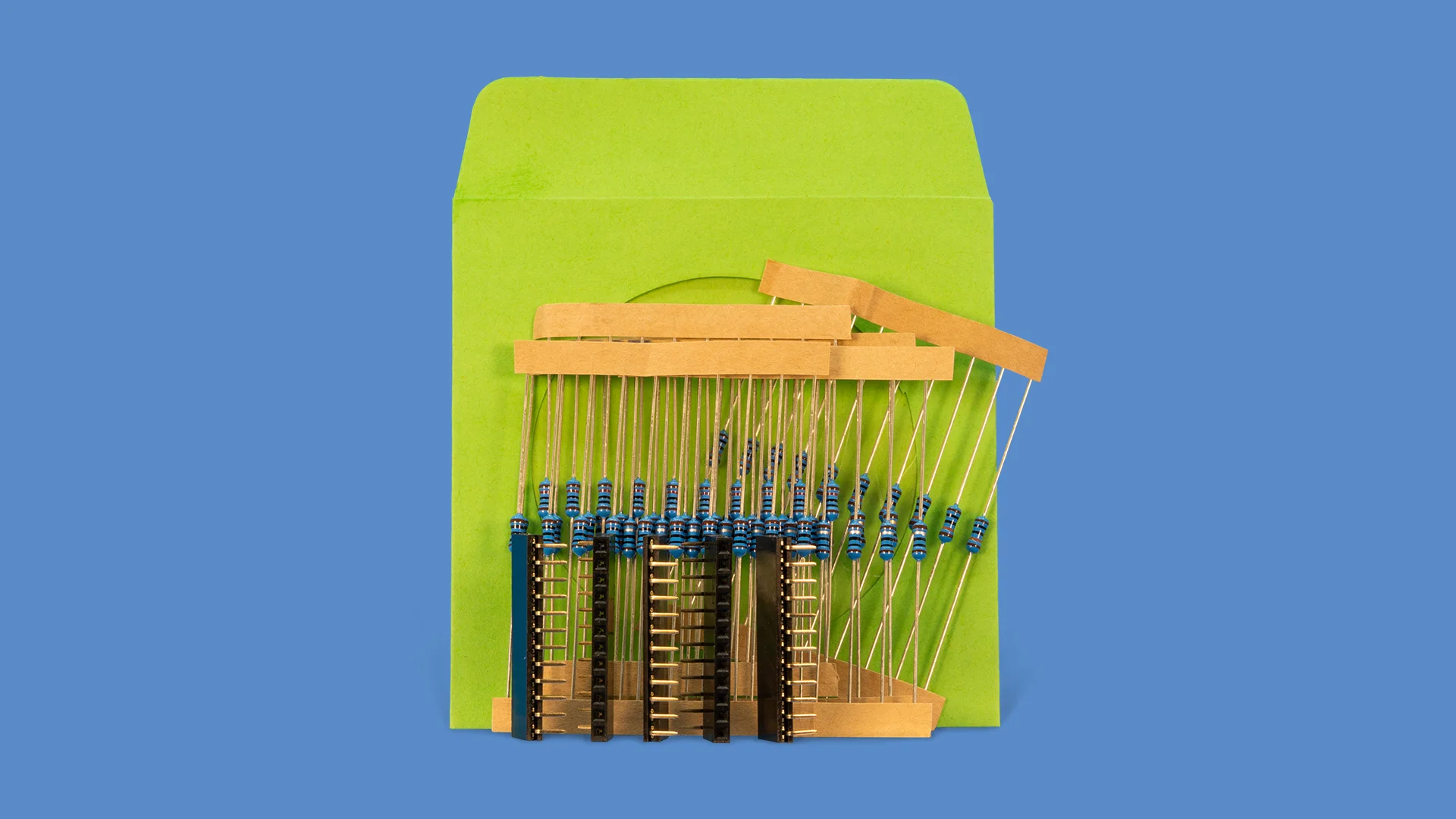

What’s included

• x10 1Ω, Multicomp MF25 1R

• x10 10Ω, Multicomp MF25 10R

• x10 100Ω, Multicomp MF25 100R

• x10 1KΩ, Multicomp MF25 1K

• x10 10KΩ, Multicomp MF25 10K

• x10 100KΩ, Multicomp MF25 100K

• x5 header, Valcon EB07-1x12-AG1-G

• x5 Lovely PCBs

Assembly

As you can see we supplied five PCBs and six different resistor values. Depending on which range you decide to use, you can get 1-99,999Ω or 10-999,990Ω.

You actually only need nine resistors per PCB, so there’s one spare. Enjoy. On the ‘copper’ side of the board you can see how the circuit board and holes are connected. Use that to determine how you’d like to connect the LEDs. You can choose to have either side be the ‘front’.

The value of the resistors we supplied you are accurate to 1% of the ‘ideal’ value. That error will either stack up cancel out depending on the direction of the error. This deviation from the ideal value is noticeable particularly in the higher values, of course, but ‘parasitic’ resistance (from the wires mostly) are more noticeable at the lower values.
